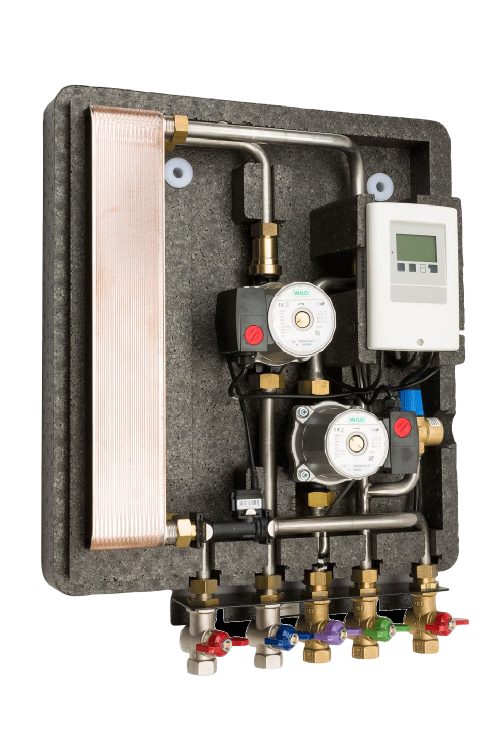

Eco Swift Freshwater Module

Description

Eco Swift Freshwater Module

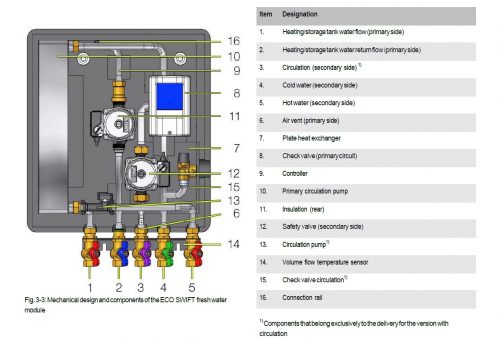

A Freshwater Module installed in conjunction with a buffer tank allows the energy stored in the buffer to be transferred to the cold mains water through a plate heat exchanger. A flow switch signals that heat is required and a pump runs to charge the primary side of the plate heat exchanger.

Key features:

Rated Performance: 40 l/min
Max Operating Temperature (primary): 95°C
Max Operating Temperature (Secondary): 95°C
Max Operating Overpressure (primary): 3 bar
Max Operating Overpressure (Secondary): 6 bar
Dimensions: 490 x 637 x171 mm
